Brian Walker's Zenith CH640
(Click on image to enlarge)
.jpg)

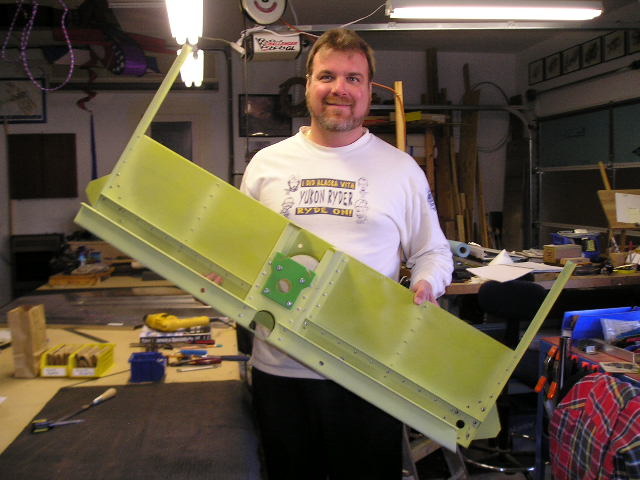

Front fuselage spar and front wing attach - 2009
.jpg)

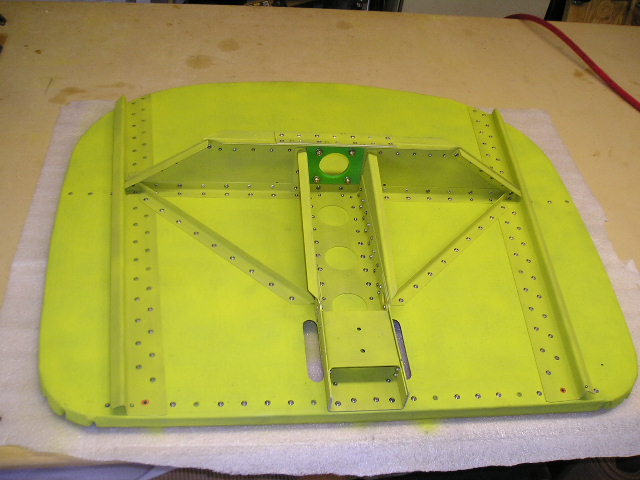

Firewall subassembly complete - 2009
.JPG)

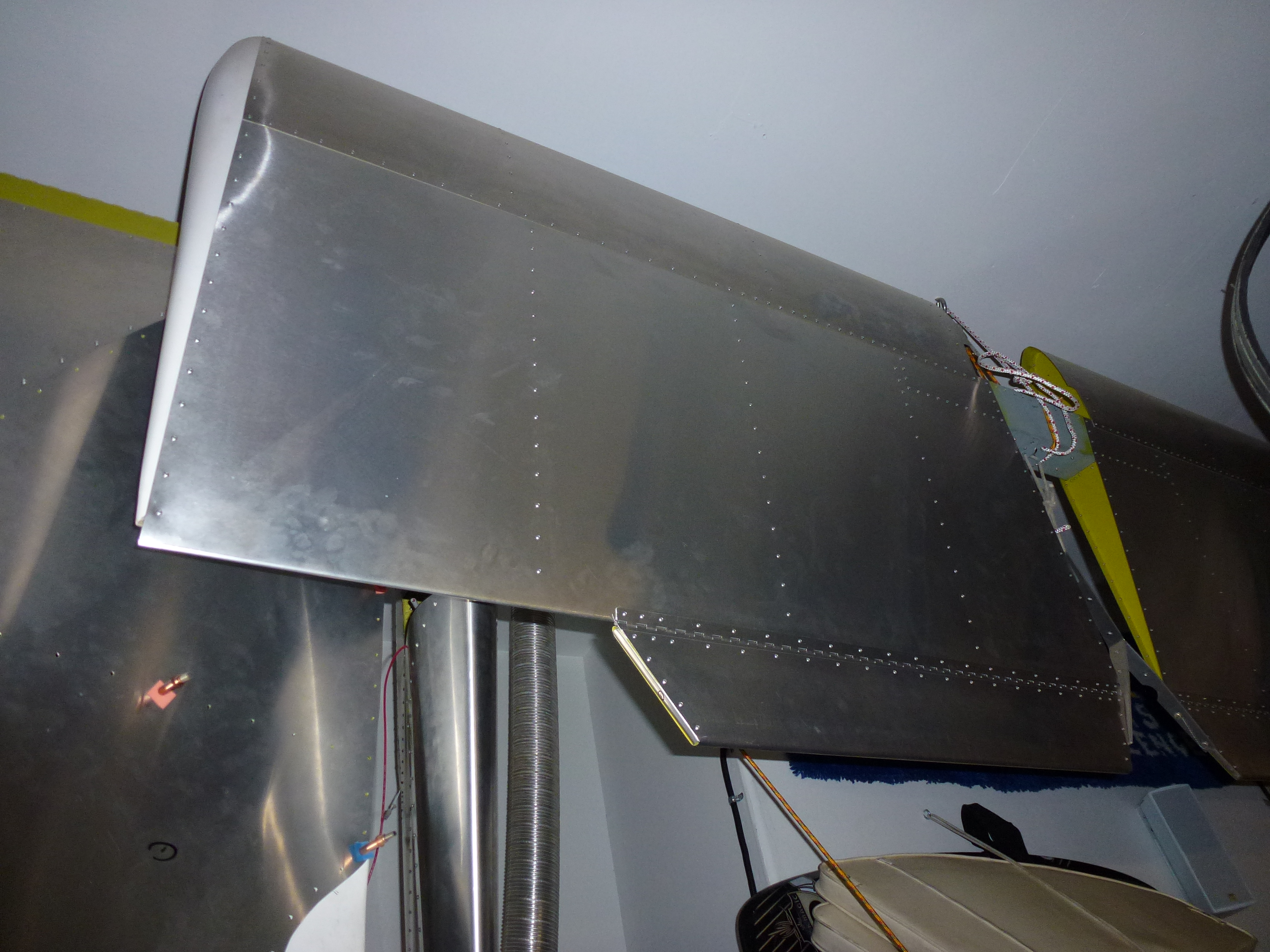

Horizontal tail and trim tabs complete and hanging from ceiling in shop - 2004
.JPG)

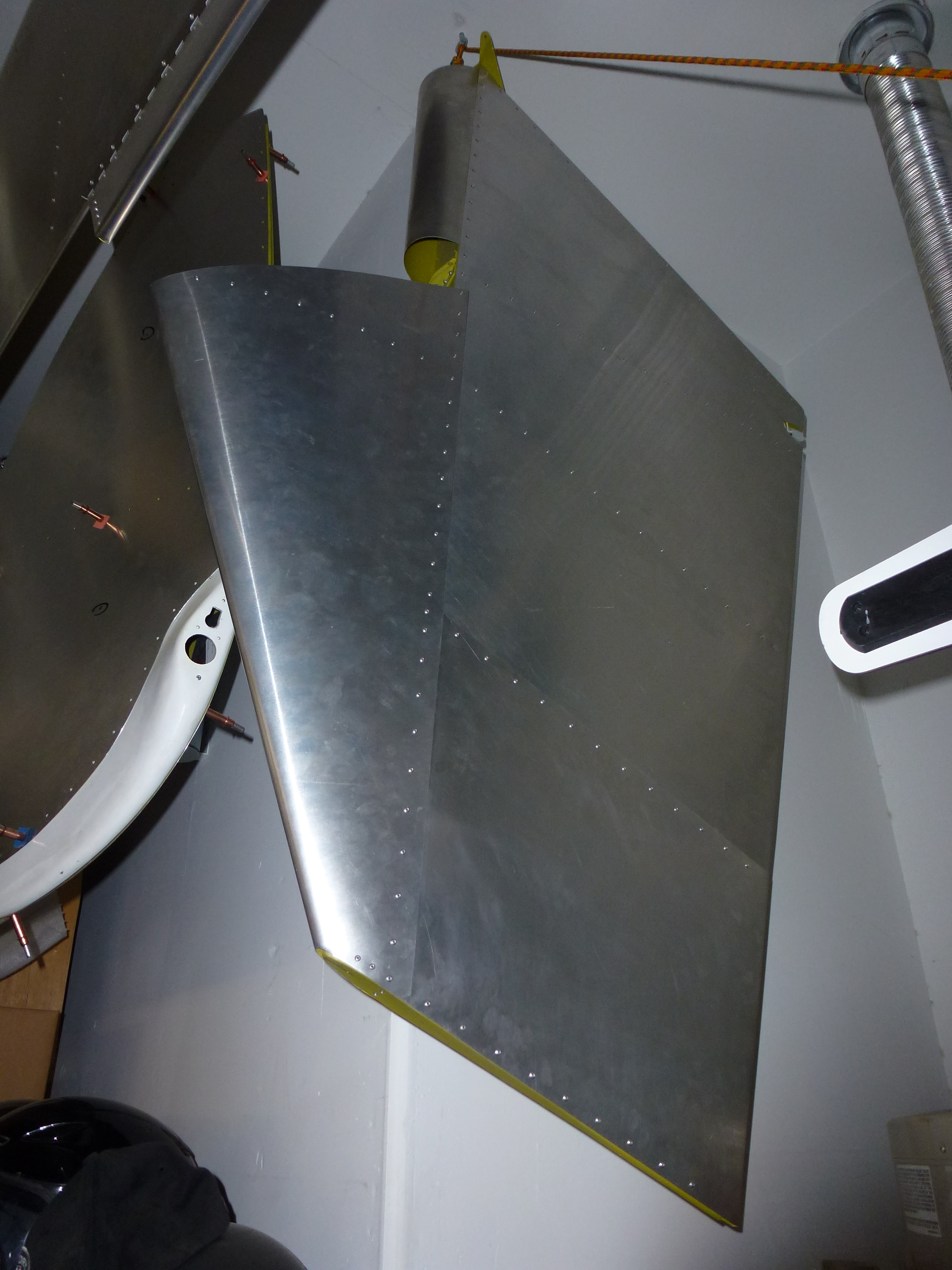

Rudder complete & hanging from ceiling in shop - 2004
.JPG)

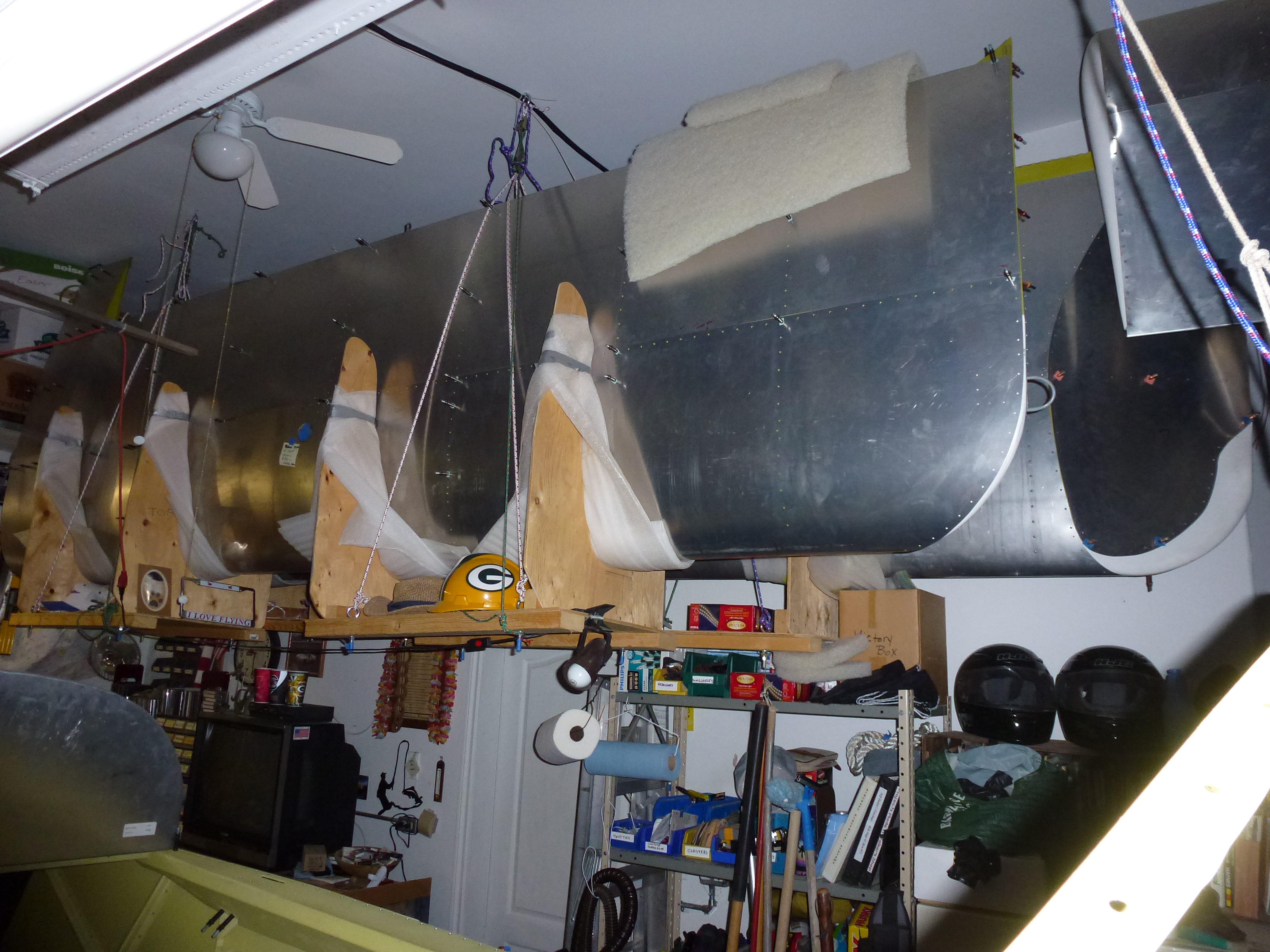

Left & right wings hanging from ceiling in shop 95% complete - 2008
.JPG)

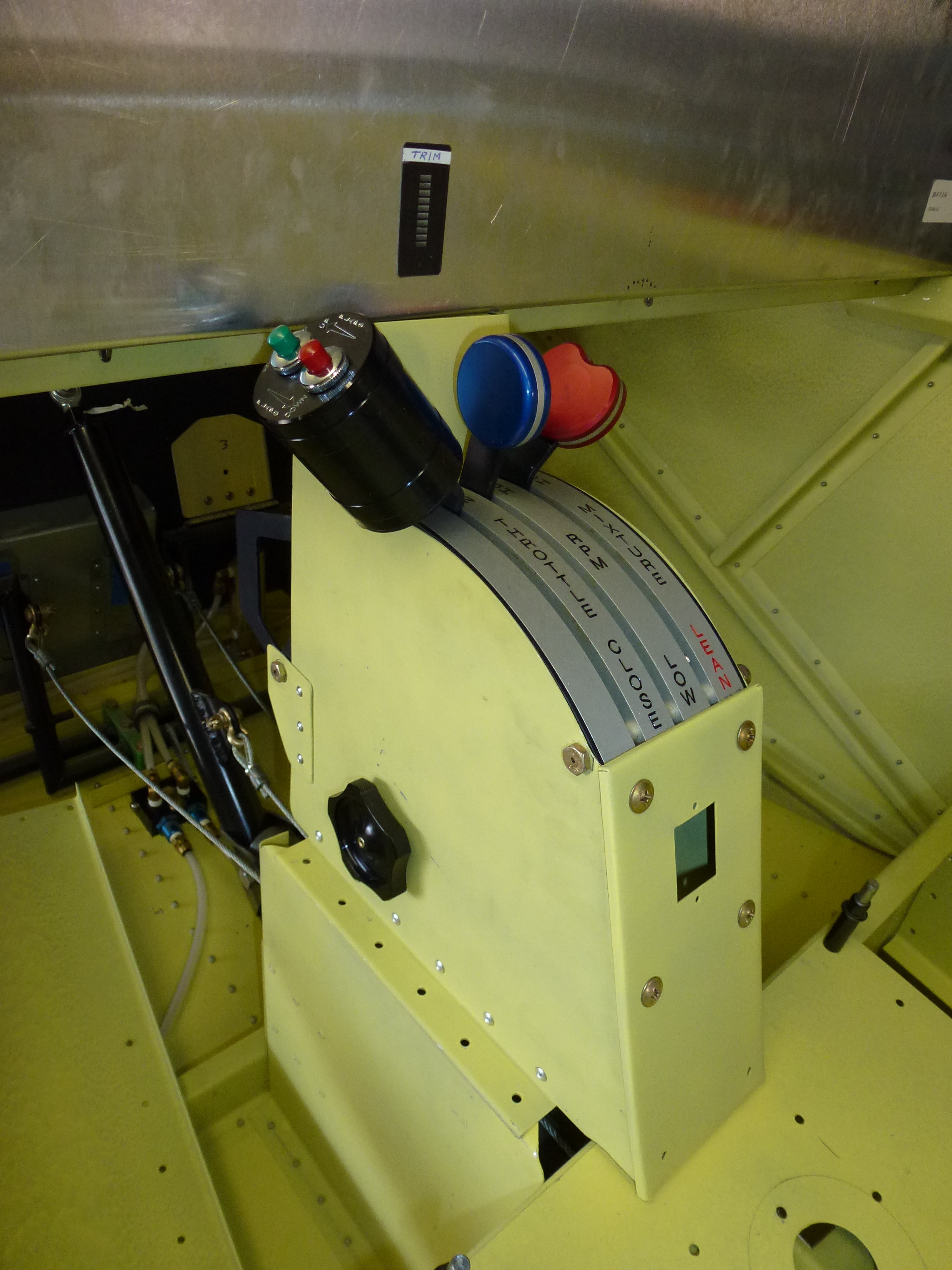

Throttle quadrant mounting - 2011
.JPG)

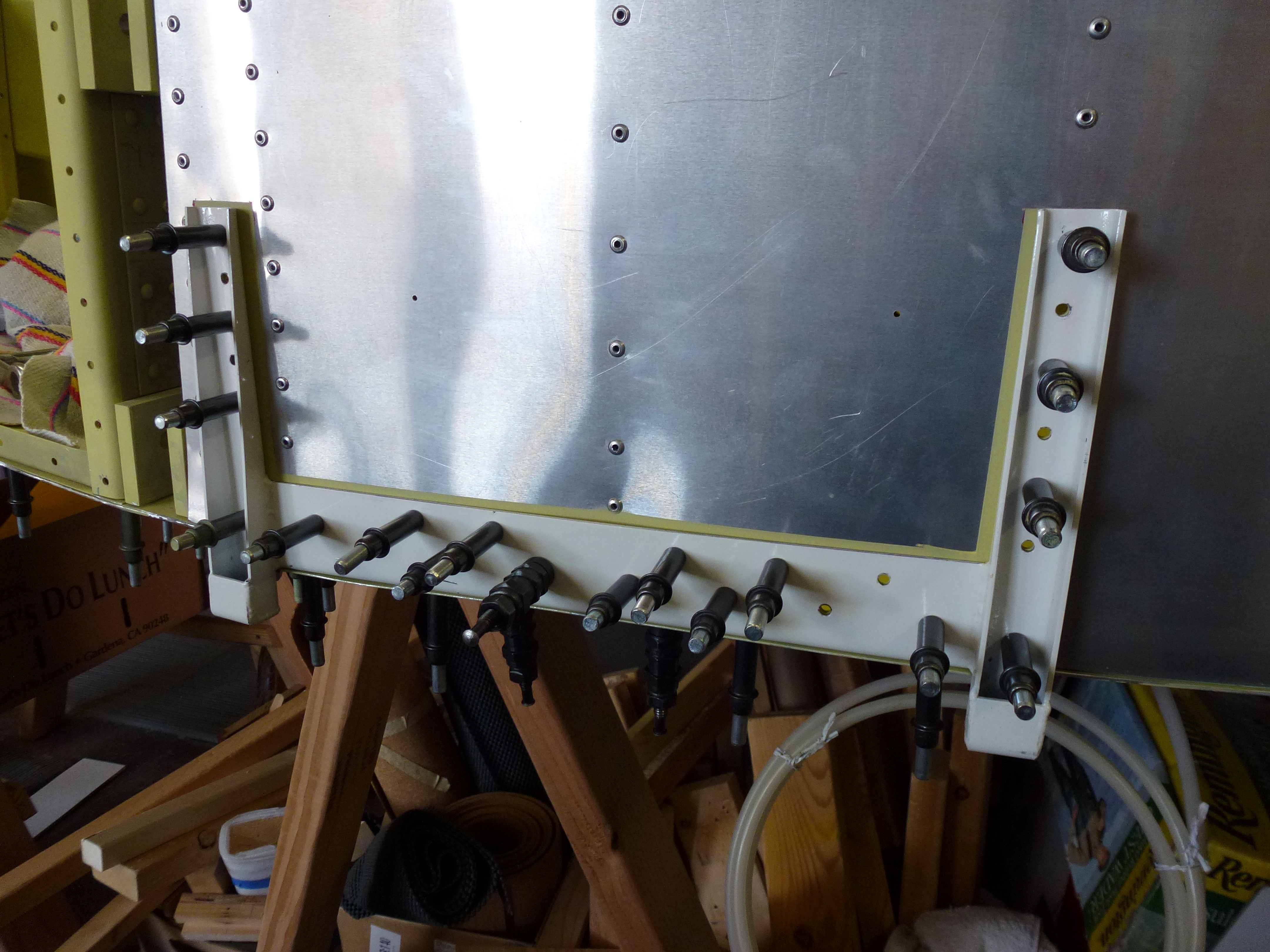

Main landing gear mounting bracket - 2012
.JPG)

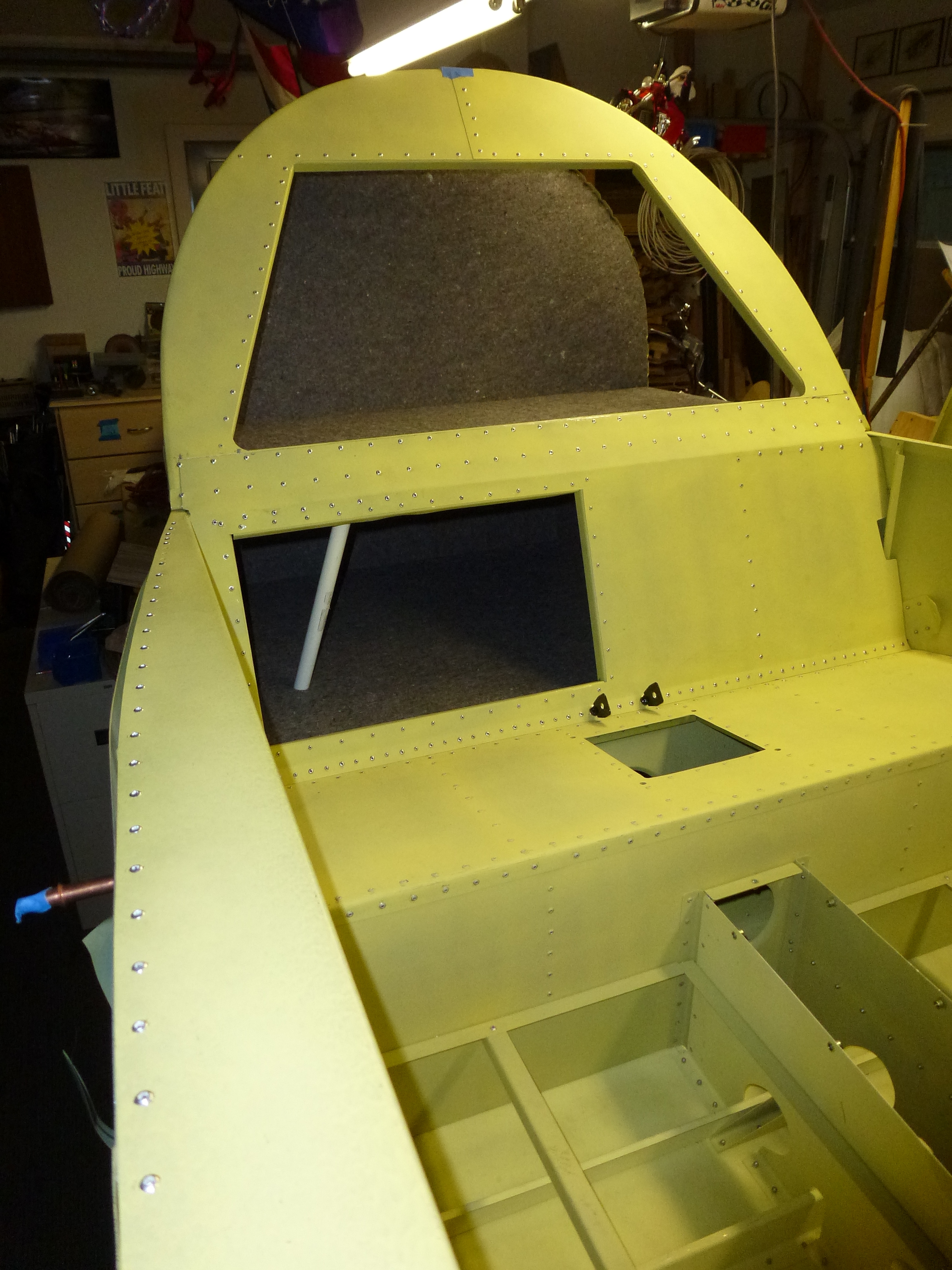

Rear seats and upper & lower baggage compartments - 2012
.JPG)

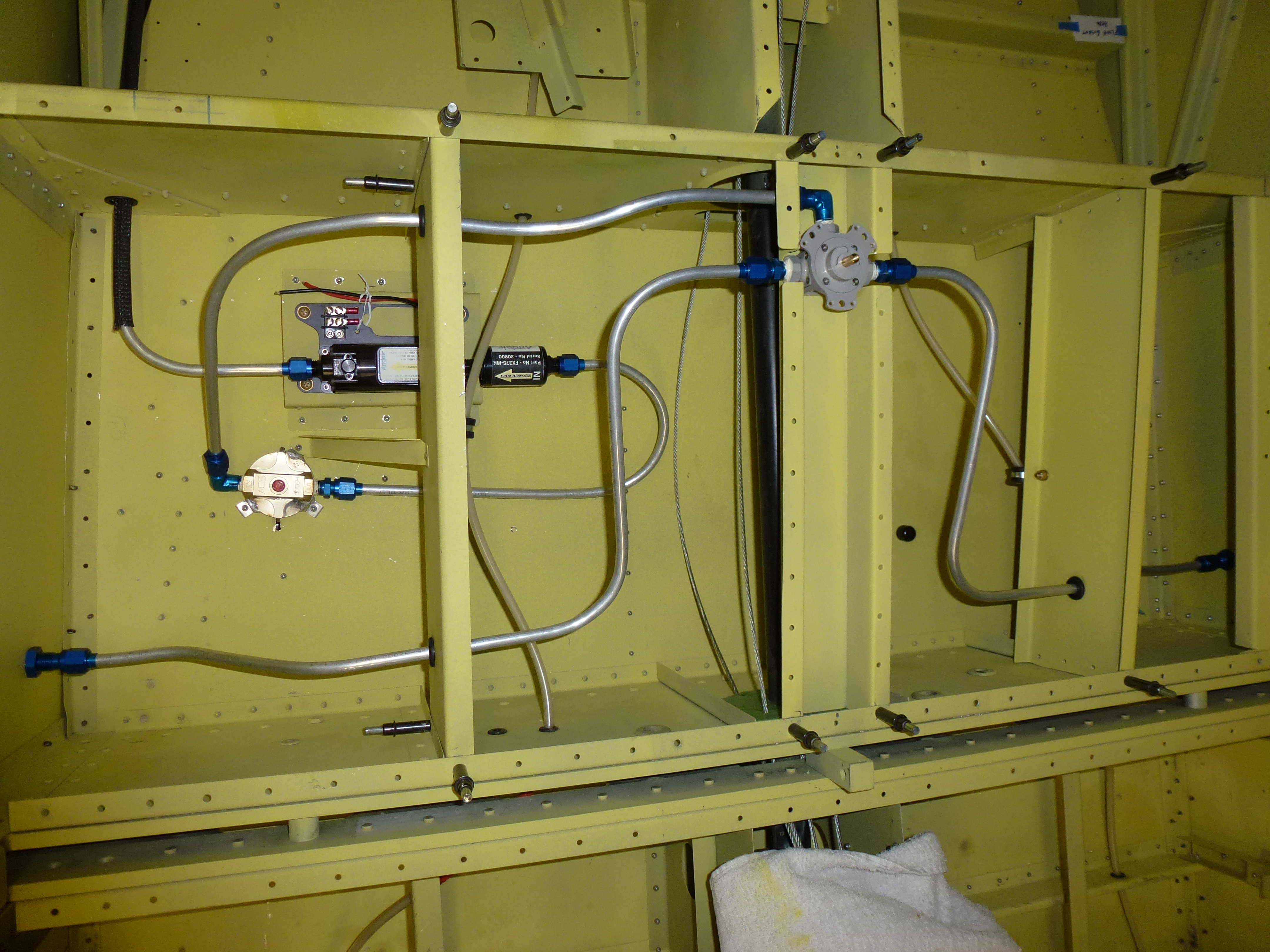

Fuel system 2-15-12
.JPG)

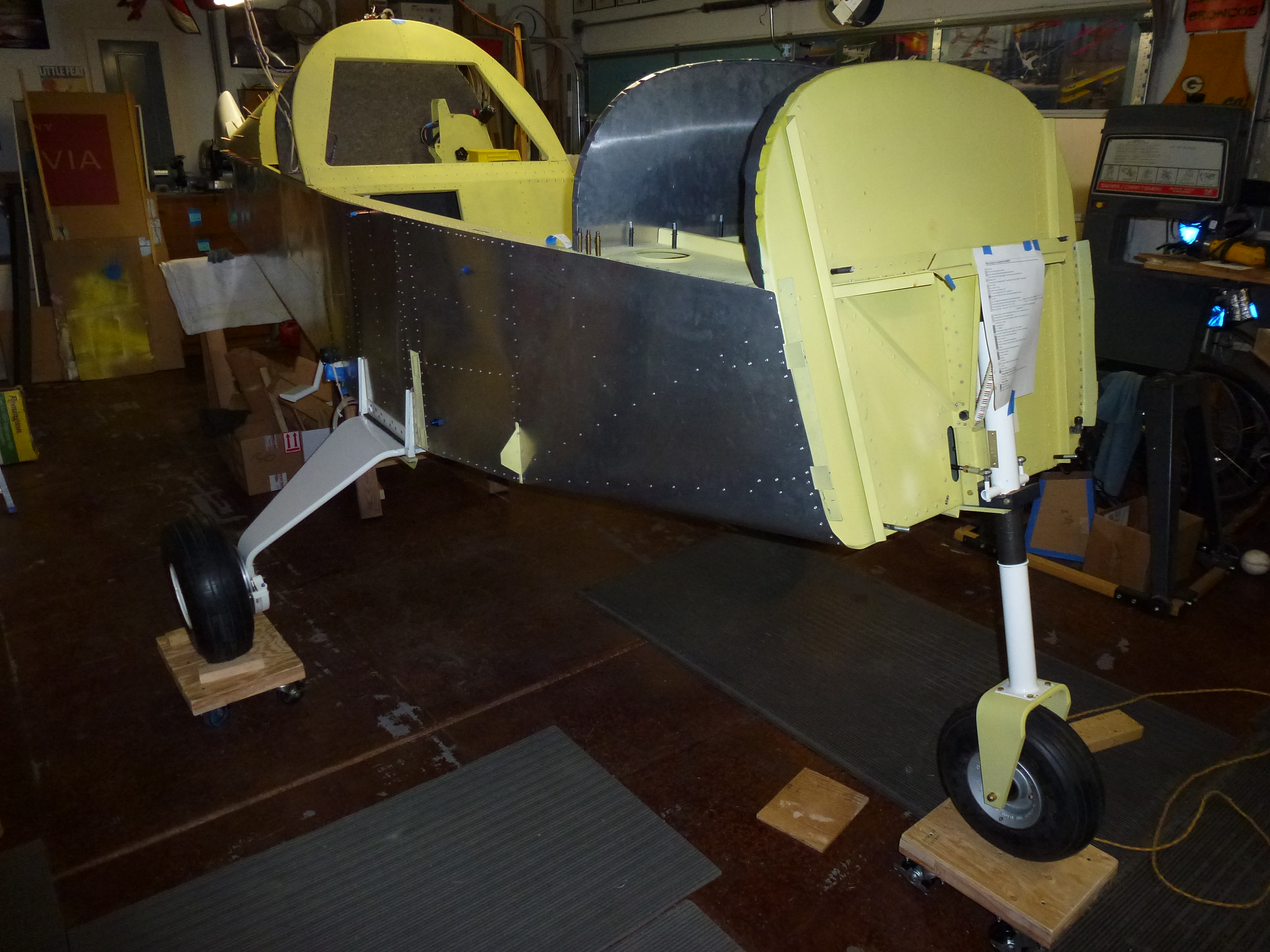

Kitplane on it's landing gear. - 3/24/12
.JPG)

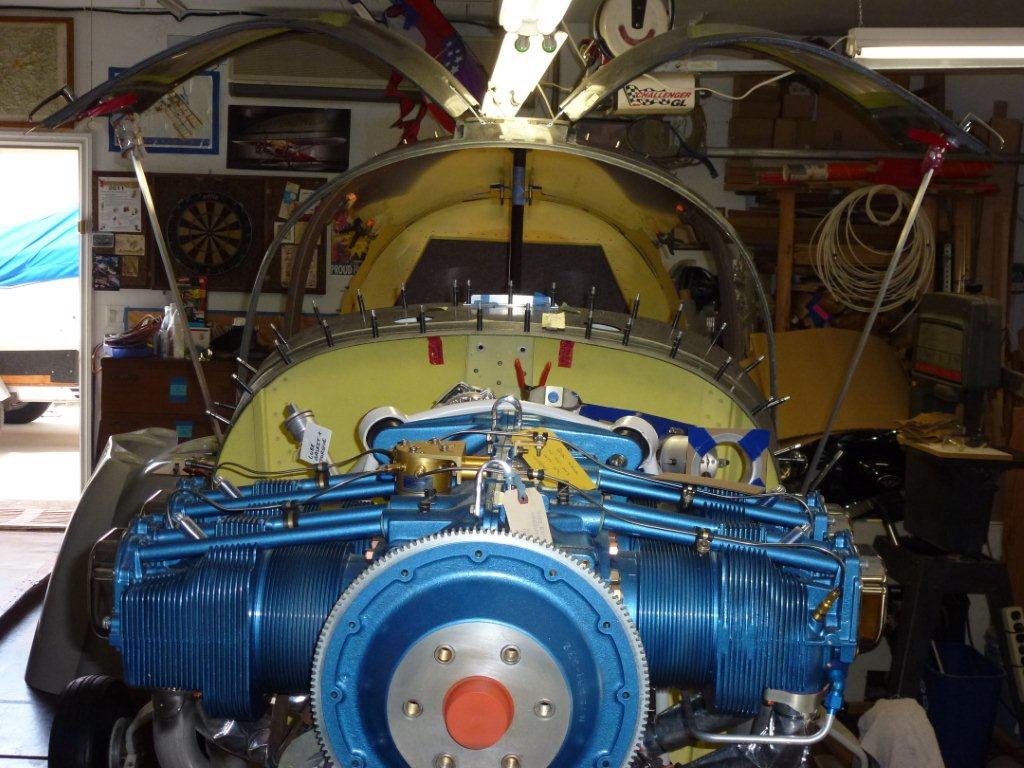

Feb 2013 - Aerosport Power IO-360-M1S (180 HP) & Vetterman Exhaust
.JPG)

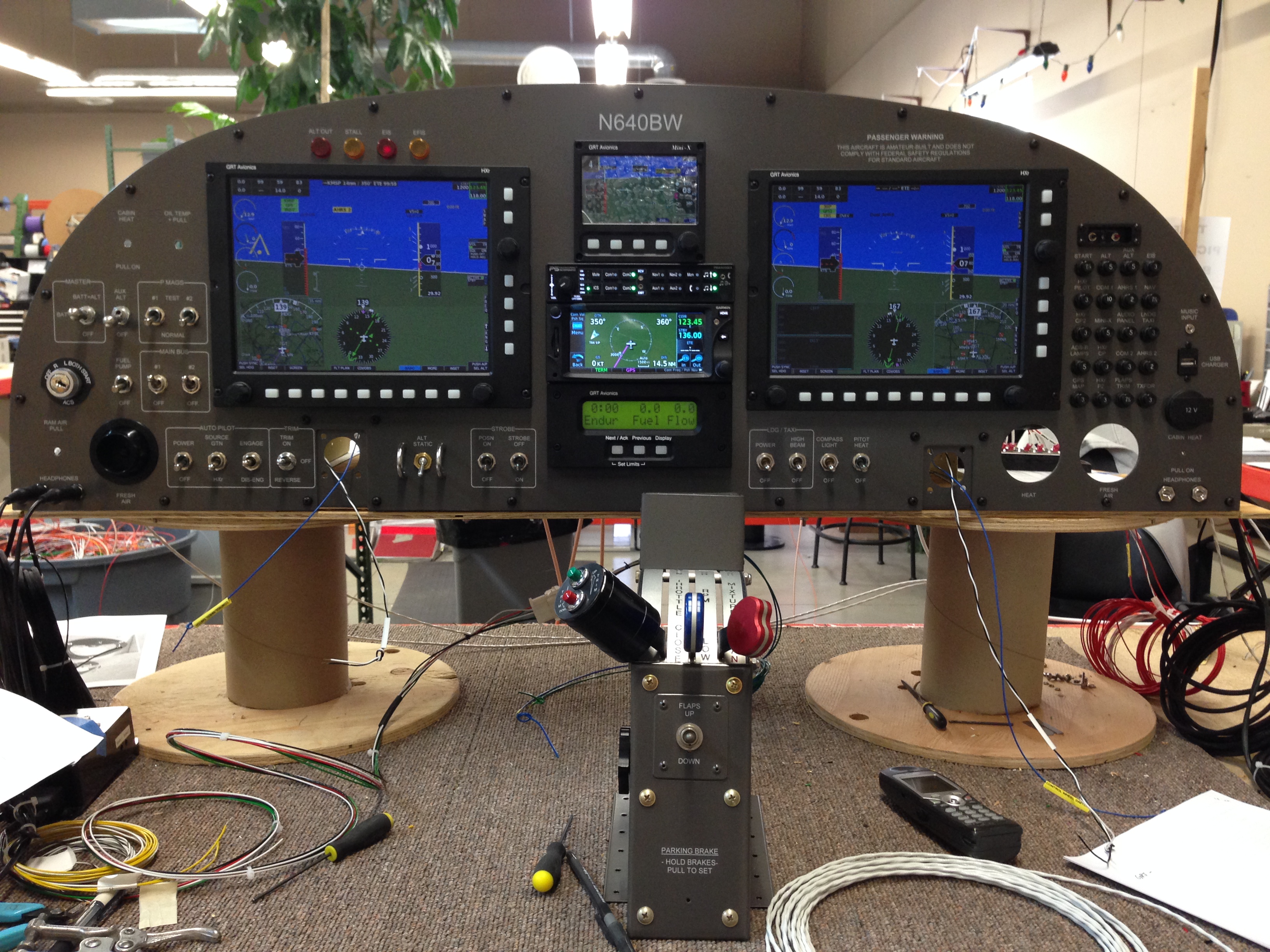

Instrument Panel and Throttle Quadrant - August 2014
.JPG)

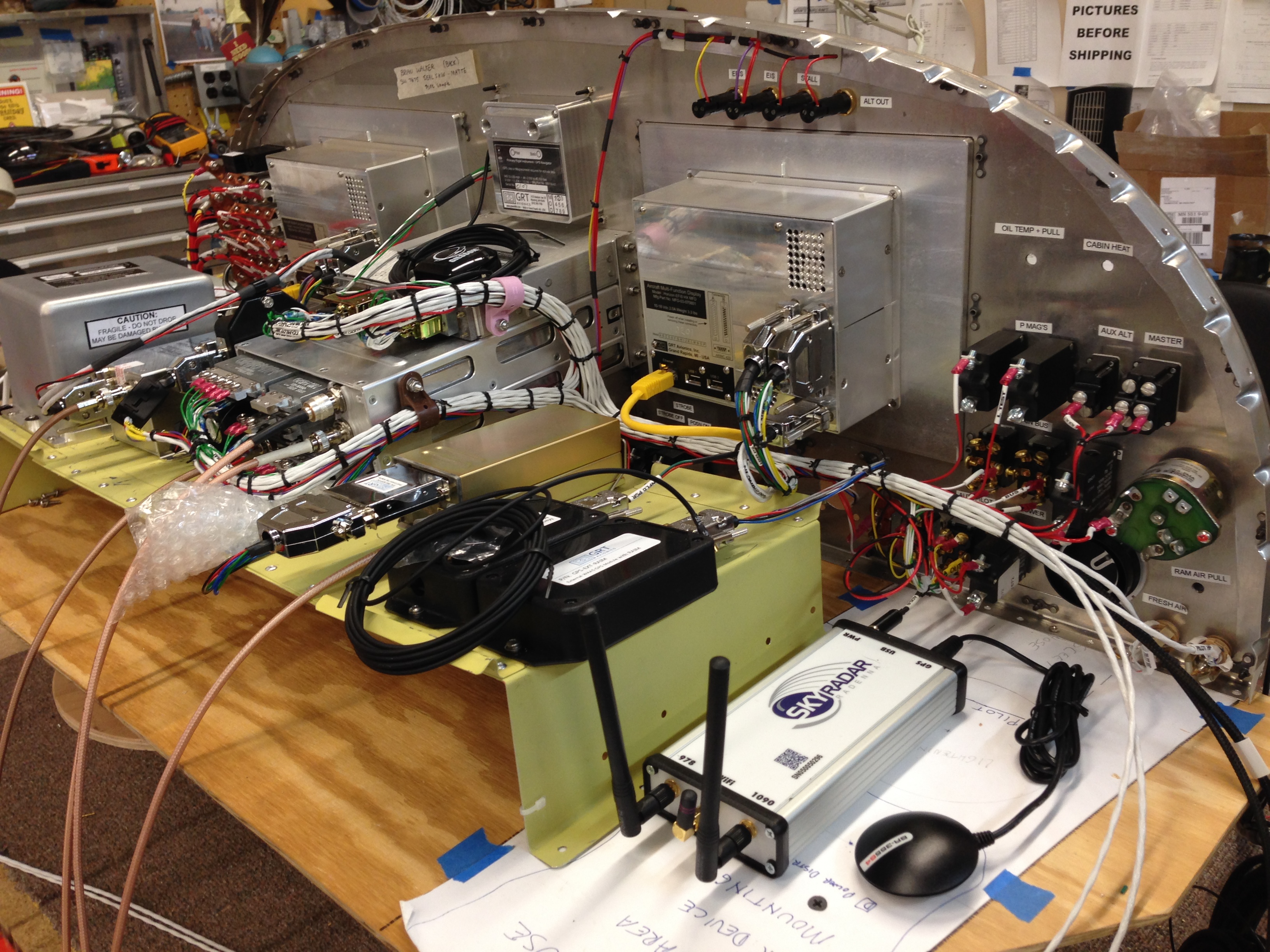

Back of Instrument Panel and the Sub-panel - August 2014
.JPG)

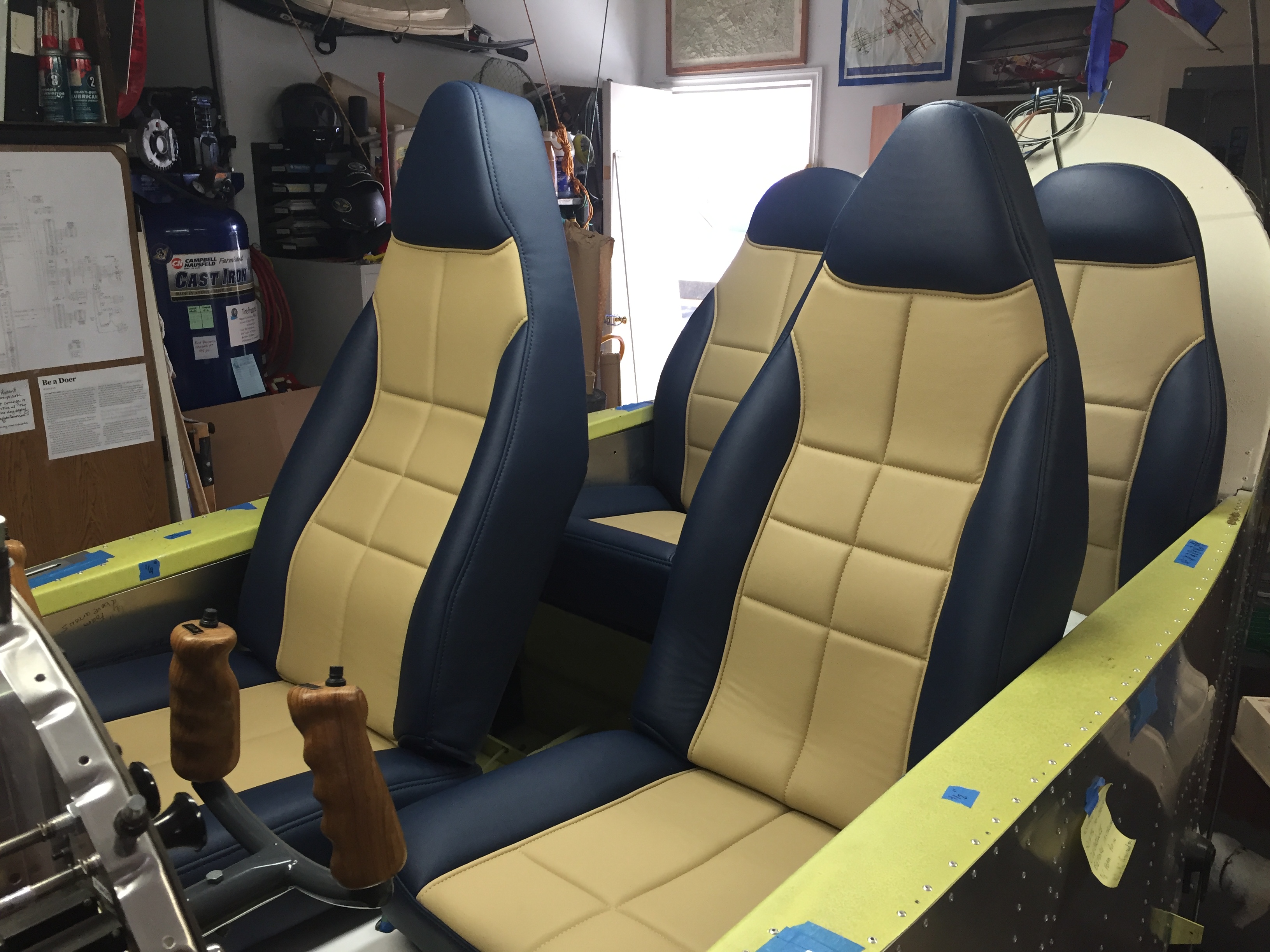

Dry fit four seats - May 2016
.JPG)

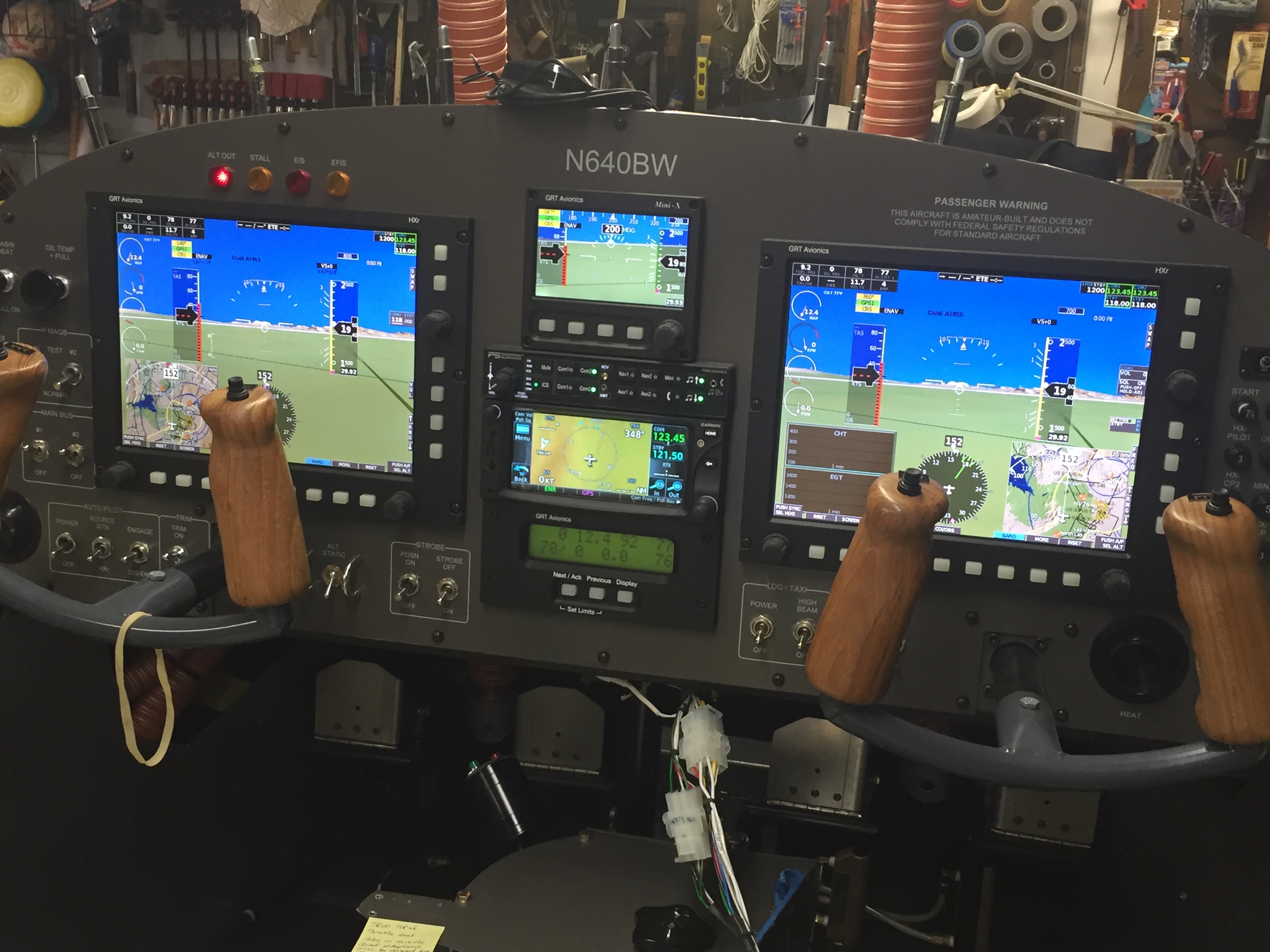

Instrument Panel - May 2016
